Allotropes

Allotropes are different physical forms of the same element. They have different structures on a molecular scale.

Allotropic forms can arise in two fundamental ways.

• The atoms themselves can be bonded together in a different way to make different molecules.
• The molecules can pack together in different arrangements

Most elements have allotropic forms:

1 Oxygen can exist in the gaseous state as simple molecules of O₂, or ozone, O₃.

2 Sulfur can exist in several physical forms, each of which has a different crystal structure.

3 Phosphorus exists as white phosphorus, red phosphorus and purple, or black phosphorus.

However, it is probably carbon that has the most famous allotropes, diamond, graphite, fullerene and graphene. The allotropes are covalent structures with each carbon atom bonded to either three or four other carbon atoms.

^ top

Giant molecular structures (macromolecules)

These may be either elements or compounds.

A giant molecular structure, or network solid, has a virtually infinite arrangement of atoms, all of which are bonded into position using strong covalent bonds. Effectively the whole unit is one molecule. Diamond is an example of a three dimensional network solid element.

It clearly is not possible to draw a diagram showing the whole molecular structure of a macromolecular solid, so normally only a representative part is shown.

^ top

Diamond

Diamond is a three dimensional lattice (network) of tetrahedral carbon atoms. The structure is horribly difficult to draw well, but a small part may be shown fairly effectively.

All of the carbon atoms are bonded to four other carbon atoms in a tetrahedral arrangement. All of the valence electrons are used for bonding. There are no valence electrons free for conduction of electricity. This rigid lattice gives diamond its unique properties. It has high melting and boiling points and is the hardest naturally occurring substance.

Each carbon atom has sp³ Hybridization with bond angles of 109.5º (HL only).

^ top

Graphite

Graphite is another naturally occurring allotrope of carbon. In this case the structure is made up of giant 2-dimensional layers, each layer held together in place by Van der Waal's attractions.

The layers themselves consist of hexagons of carbon atoms in which each carbon is bonded to three others. This leaves one free electron per carbon atom that can be delocalised throughout a layer and conduct electricity.

Graphite is a black slippery solid with a very high melting and boiling point. It's slippery nature comes from the ability of the layers to slide over one another. This is because the dispersion forces that hold the layers to one another are weak.

^ top

Fullerenes

The graphite layer structure can be folded and bent into balls and tubes providing the number of carbon atoms in the sheet is large enough. These balls and tubes (bucky balls and nano tubes) have all been developed from the discovery by Kroto of spherical molecules consisting of 60 carbon atoms (and greater). These molecules were called fullerenes after the architect who popularised the geodhesic dome (Richard Buckminster Fuller), as the sphere is effectively two hemispherical geodhesic domes stuck together to make a sphere.

Fullerene is an allotrope of carbon with 60 carbon atoms in the molecule. It is not a giant structure (C₆₀ is just not that large when compared to 'real' giant structures, such as graphite and diamond). It was first isolated from soot and can be crystallised as black, or red crystals, with a melting point of about 280ºC. Fullerene is soluble in many non-polar solvents.

The structure consists of five and six membered carbon rings in which each carbon atoms is attached to three other carbon atoms. The Hybridization at each carbon is sp² (HL only). It has delocalised electrons spread out over the whole structure in one large molecular orbital.

^ top

Graphene

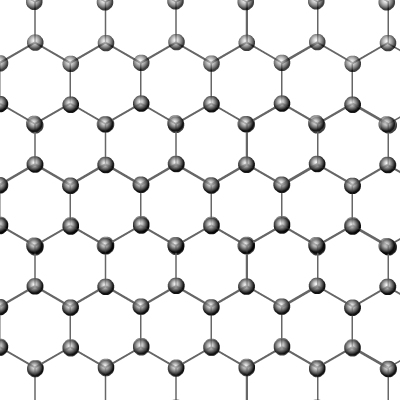

Graphene is a newly discovered allotrope of carbon which effectively consists of single layers of graphite. It has many potentially exciting properties and there are currently many research facilities trying to develop new ways to prepare the graphene sheets rapidly and in a pure form.

Graphene is about 200 times stronger than steel and nearly transparent. It is the worlds most conducting material and is 1,000,000 times thinner than a human hair. ^ref

It has been suggested that new graphene technology could produce transparent and flexible computers.

^ top

Silicon

Silicon also forms giant macromolecular structures similar to diamond, in which all of the valence electrons are used to link each of the silicon atoms into a giant array of tetrahedral atoms.

The properties of silicon is consistent with its macromolecular structure. It is a hard solid with a very high melting and boiling point.

^ top

Silicon dioxide

Silicon dioxide is a macromolecular compound with a structure which can be thought of as having oxygen atoms interposed between each pair of silicon atoms within the diamond-type lattice.

Silicon showing only one part of the giant macromolecular structure

Silicon dioxide showing how the oxygen atoms are bonded between silicon atoms

Silicon dioxide has the characteristic properties of a macromolecular compound; a high melting and boiling point and very hard. All of its valence electrons are used in bonding so it is a non-conductor. The silicon atoms (and the oxygen atoms) use sp3 Hybridization.
