The shape of the 'pH against volume added' graph differs depending on the type of acid and base.

Syllabus ref: R3.1.13

Reactivity 3.1.13 - pH curves of different combinations of strong and weak monoprotic acids and bases have characteristic shapes and features. (HL)

  • Interpret the general shapes of pH curves for all four combinations of strong and weak acids and bases.

Guidance

  • Interpretation should include: intercept with the pH axis, equivalence point, buffer region, points where pH = pKa or pOH = pKb.

Tools and links

  • Tool 1 - When collecting data to generate a pH curve, when should smaller volumes of titrant be added between each measurement?

Strong acid - strong base titrations

Titration curves are the graphs obtained by plotting the pH of the reaction mixture against the volume of base (or acid) added during the titration of either an acid by a base or vice versa.

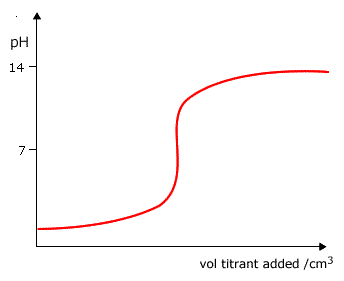

A typical strong acid - strong base titration curve looks like as follows:

^ top

Weak acid - strong base titration

^ top

Weak base - strong acid titration

^ top

Weak acid with a weak base

This mixture cannot be titrated as the change in pH near the equivalence point is too small to allow reliable results.

^ top

Worked examples

Q882-01 Separate 20.0 cm3 solutions of a weak acid and a strong acid of the same concentration are titrated with NaOH solution. Which will be the same for these two titrations?
  1. I.   Initial pH
  2. II.  pH at equivalence point
  3. III. Volume of NaOH required to reach the equivalence point
  1. I only
  2. III only
  3. I and II only
  4. II and III only
Answer

Volume of NaOH required to reach the equivalence point only
Q882-02 What volume of 0.284 M NaOH is needed to titrate 100.00 cm3 of 0.124 M HCl to the equivalence point?
  1. 35.2 cm3
  2. 40.8 cm3
  3. 43.7 cm3
  4. 229 cm3
Answer
By the equation:
NaOH + HCl → NaCl + H2O

1 mole of acid is equivalent to 1 mole of base

Moles of acid = 0.1 x 0.124 = 0.0124

this must equal moles of base, therefore

molarity x volume base = 0.0124 = 0.284 x Vb

Volume base = 43.66 cm3

Q882-03 What is the pH at the equivalence point in a titration of 0.020 M NH3(aq) with 0.020 M HBr(aq)? For ammonia, Kb = 1.8 x 10-5.
  1. 5.5
  2. 5.6
  3. 7.0
  4. 8.5
Answer

At the equivalence point there is only ammonium bromide present at a concentration of 0.01M

NH3 + H2O NH4+ + OH-

Kb = 1.8 x 10-5 therefore Ka of the conjugate acid = 5.56 x 10-10

NH4+ + H2O NH3 + H3O+

assume that the [NH4+] is unaffected by the equilibrium

Ka = [NH3][H3O+]/[NH4+]

5.56 x 10-10 x 0.01 = [NH3][H3O+] = [H3O+]2

Therefore [H3O+] = 2.36 x 10-6

Therefore pH = 5.6

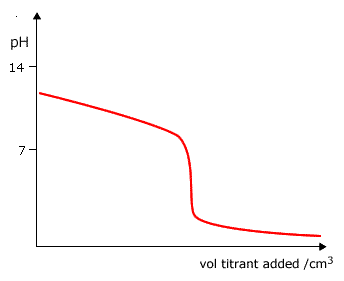

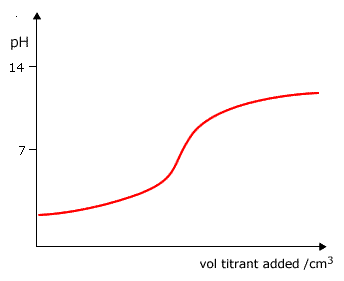

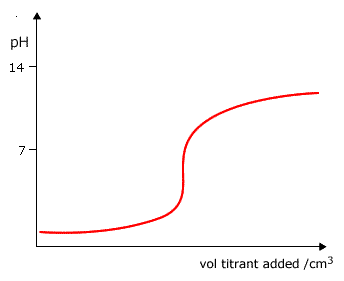

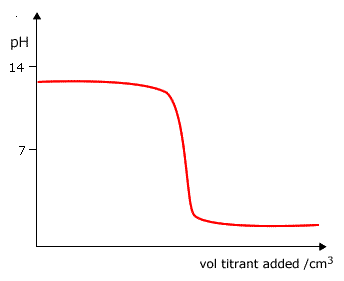

Q882-04 Which curve is produced by the titration of a 0.1 mol dm-3 weak base with 0.1 mol dm-3 strong acid?
Answer

Curve D as it starts at a pH lower than 13 and ends up at a very low pH.

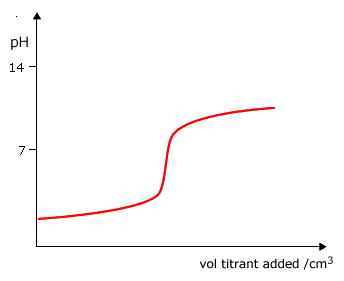

Q882-05 Which graph shows how the pH changes when a weak base is added to a strong acid?

Answer

Weak base to strong acid - the pH starts very low pH=1 and rises to pH9-10, with a pronounced inflexion. Curve D
