Standard level

Hydrogen bonding is an intermolecular force of electrostatic attraction between hydrogen atoms attached to electronegative atoms on one molecule and the lone pairs of electronegative atoms on another molecule. A hydrogen bond has a strength about one tenth that of a normal covalent bond.

Syllabus ref: S2.2.9

Structure 2.2.9 - Given comparable molar mass, the relative strengths of intermolecular forces are generally: London (dispersion) forces < dipole–dipole forces < hydrogen bonding.

  • Explain the physical properties of covalent substances to include volatility, electrical conductivity and solubility in terms of their structure.

Guidance

Tools and links

  • Tool 1, Inquiry 2 - What experimental data demonstrate the physical properties of covalent substances?
  • Structure 3.2 - To what extent does a functional group determine the nature of the intermolecular forces?
hb

Hydrogen bonding

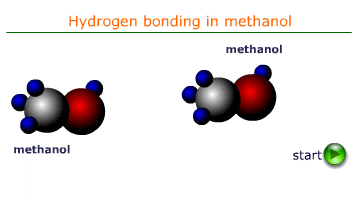

Hydrogen bonding is a special case of dipole-dipole attractions.

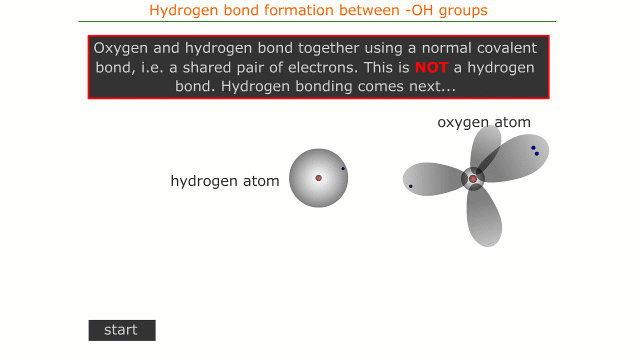

When hydrogen is bonded to nitrogen, oxygen or fluorine, a very strong dipole is formed, making the hydrogen very strongly (partially) positive. This hydrogen is then attracted to the lone pairs on other similar molecules (nitrogen, oxygen and fluorine all have lone pairs) forming a hydrogen bond, which is stronger than dispersion forces or dipole-dipole interactions, but weaker than normal covalent bonding.

The reason for the strength of the positive charge on the hydrogen atoms, lies in the fact that it has only one bonding pair of electrons. Usually this pair is shared equally between hydrogen and the other bonded atom. However, in the case of hydrogen attached to oxygen, the oxygen pulls the electrons towards it leaving the hydrogen 'naked'.

As the hydrogen atom has no more electron shells, effectively it is the nucleus that is revealed. This is extremely small compared to an atom, so the developing partial charge has a much higher charge density than normal.

^ top

The group 15, 16 and 17 hydrides

The effect of hydrogen bonding on intermolecular forces can be demonstrated very well by studying the boiling points of the group 16 hydrides. As expected, the general trend is increased boiling point with increased relative molecular mass (as the dispersion force increases. However, water is completely anomalous to the trend, as it has a much higher boiling point than expected.

The group 15 hydrides

The group 16 hydrides

The group 17 hydrides

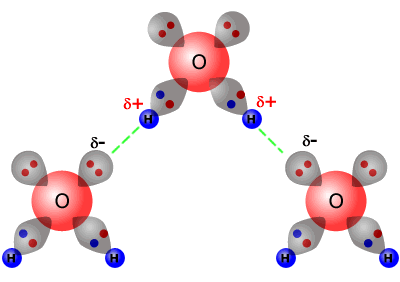

This anomalous boiling point can be explained by the high degree of hydrogen bonding between water molecules. Each molecule has two partially positive hydrogen atoms and it also has two lone pairs of electrons on the oxygen atom.

This means that the water molecules are able to form two hydrogen bonds per molecule with other water molecules.

The other members of the group 16 hydrides show the effect of increasing relative molecular mass on boiling point. This is to be expected, as the increase in relative molecular mass causes an increase in the strength of the dispersion forces.

Hence there is a gradual but regular increase from H2S to H2Se to H2Te

^ top

Comparing molecules

So how do we decide which is the most important force within a molecule? The answer is that we can only compare molecules in which we can 'cancel out' factors. For example, it doesn't make sense to try and compare a very large molecule with only dispersion forces, with a small molecule having hydrogen bonding. Each has a high degree of intermolecular interaction, but they arise from different sources, so can't fairly be compared.

We can, however, compare molecules with similar relative molecular mass, 'cancelling out' the dispersion influence, in which case any difference in boiling point is due to either permanent dipole-dipole interactions, or hydrogen bonding.

Example: Compare and explain the boiling points of the molecules CH3OCH3 and C2H5OH.

Methoxymethane is a slightly polar molecule, with a partial negative charge on the oxygen. Ethanol is a polar molecule with an O-H group. Both molecules have the same relative mass and so the influence of dispersion forces can be discounted in any comparison.

The boiling point of ethanol is much higher than methoxymethane, as ethanol is able to form hydrogen bonds, whereas methoxymethane has rather weaker dipole-dipole interactions.

^ top

Dimerisation

Some molecules have the ability to 'link' to other similar molecules using hydrogen bonding, in such a way that the molecules behave as two in one, so to speak. These double molecules are called dimers.

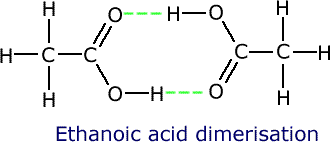

Ethanoic acid is able to form two hydrogen bonds with another ethanoic acid molecule, making a structure with double the relative molecular mass.

Ethanoic acid has a boiling point of 118ºC, reflecting the high apparent relative molecular mass of 120.

^ top

Solubility

The process of dissolution involves the solvent forming bonds with the solute molecules. This bond formation is exothermic, the energy being used to break the interparticular forces holding the structure together. There is also an increase in entropy when a solid dissolves, which contributes to the solubility according to Gibbs Free Energy for the process (section 4.62). If the overall Gibbs Free Energy change is negative, the substance is soluble. (remember: ∆G = ∆H - T∆S)

Substances which hydrogen bond usually dissolve in water. This is because the water molecules themselves can hydrogen bond to the solute. This bond formation makes the process favourable.

Ethanol is an alcohol which is miscible in all proportions with water. This means that it forms hydrogen bonds easily with the water. The solubility of the alcohols decreases as the relative molecular mass increases. As we ascend the homologous series of alcohols the relative mass increases by adding -CH2- units to the hydrocarbon chain.

alcohol formula solubility
Methanol CH3OH miscible
Ethanol CH3CH2OH miscible
Propan-1-ol CH3CH2CH2OH miscible
Butan-1-ol CH3CH2CH2CH2OH soluble
Pentan-1-ol CH3CH2CH2CH2CH2OH less soluble

The increasing mass means that dispersion forces become more important and the alcohol molecules begin to form intermolecular bonds with each other more easily than with the water molecules.

^ top

Worked examples - Intermolecular forces

Q243-01 As the size of the halogen molecules, X2, increases down the group, their boiling points:
  1. Decrease due to decreasing electronegativity
  2. Decrease due to decreasing bond angles
  3. Increase due to increasing permanent dipole-dipole attractions
  4. Increase due to increasing permanent dispersion forces
Answer

Halogens are all non-polar, their intermolecular attactions are dispersion only. The force is dependent on the relative mass, which increases on descending the group. Correct response = increase due to increasing permanent dispersion forces
Q243-02 The compounds A, B and C have approximately the same molar mass:
A B C
C4H10 CH3CH2CH2OH CH3OCH2CH3

When the compounds are arranged in order of increasing boiling points (lowest boiling point first) the correct order is:

  1. A, C, B
  2. A, B, C
  3. B, C, A
  4. C, B, A
Answer

Compound A is an alkane and has no dipoles, it's intermolecular forces are dispersion only.

Compound B is an alcohol, which has hydrogen bonding

Compound C is an ether, which has weak permanent dipoles.

The correct order is alkane, ether and then alcohol, response A, C, B
Q243-03 Which of the compounds H2O, H2S, H2Se and H2Te has the highest boiling point?
  1. H2O
  2. H2S
  3. H2Se
  4. H2Te
Answer

These compounds are the hydrides of group 16. Although the relative mass increases on descending the group (increasing the dispersion forces), water, H2O, has extensive hydrogen bonding and the highest boiling point.

Q243-04 Which intermolecular forces exist in dry ice CO2(s)?
  1. Covalent bonds
  2. Dipole - dipole attractions
  3. dispersion forces
  4. Hydrogen bonds
Answer

Although carbon dioxide has polar bonds, its symmetry makes it a non-polar compound. The only intermolecular forces are dispersion.
Q243-05 The molar masses of C2H6, CH3OH, CH3F are very similar. How do their boiling points compare?
  1. C2H6 < CH3OH < CH3F
  2. CH3F < CH3OH < C2H6
  3. CH3OH < CH3F < C2H6
  4. C2H6 < CH3F < CH3OH
Answer

The three types of compound include an alkane, C2H6, (hydrocarbon) with only dispersion forces, an alcohol, CH3OH, with hydrogen bonding, and a halogenoalkane, CH3F, with permanent dipole - dipole attractions.

The correctr order of increasing boiling point is alkane, halogenoalkane, alcohol, therefore C2H6 < CH3F < CH3OH
Q243-06 Which sequence of Group 18 elements demonstrates a gradual decrease in the strength of the dispersion forces? All the choices are elements in the liquid state.
  1. Ar, Kr, Ne, Xe
  2. Kr, Xe, Ar, Ne
  3. Ne, Ar, Kr, Xe
  4. Xe, Kr, Ar, Ne
Answer

To decrease the force of dispersion attractions, the relative mass must decrease. It does so in the order Xe, Kr, Ar, Ne
Q243-07 Which types of bonding are present in CH3CHO in the liquid state?
  1. I - Single covalent bonding
  2. II - Double covalent bonding
  3. III - Hydrogen bonding
  1. I and II only
  2. I and III only
  3. II and III only
  4. I, II and III
Answer

This question involves both intermolecular forces and intramolecular (from atom to atom within the molecule) bonding.

  • I - Single covalent bonding holds many of the atoms together within the ethanal molecule.
  • II - Double covalent bonding holds the carbon to the oxygen atom in the ethanal molecule
  • III - There is no hydrogen bonding in ethanal as the hydrogen atom is not directly bonded to the oxygen atom.

Correct response I and II only
Q243-08 Why is the boiling point of PH3 lower than that of NH3?
  1. PH3 is non-polar whereas NH3 is polar
  2. PH3 is not hydrogen bonded, whereas NH3 is hydrogen bonded
  3. Dispersion forces are weaker in PH3 then in NH3
  4. The molar mass of PH3 is greater than that of NH3
Answer

The hydrogen atoms cannot cause hydrogen bonding unless the atom to which they are attached is highly electronegative. Thus PH3 is not hydrogen bonded, whereas NH3 is hydrogen bonded
Q243-09 In ethanol, C2H5OH(l), there are covalent bonds, hydrogen bonds and dispersion forces. Which bonds or forces are broken when ethanol is vaporised?
  1. Only hydrogen bonds
  2. Covalent bonds and hydrogen bonds
  3. Covalent bonds and dispersion forces
  4. Hydrogen bonds and dispersion forces
Answer

To boil a substance all of the intermolecular forces must be broken. In ethanol there are both permanent dipole-dipole interactions (hydrogen bonding in this case) and temporary induced dipole interactions (dispersion forces).

Covalent bonds are NEVER broken when a substance boils, only when it decomposes.

Thus, Hydrogen bonds and dispersion forces.
Q243-10 When the following bond types are listed in decreasing order of strength (strongest first) what is the correct order?
  1. Covalent < hydrogen bonds < dispersion
  2. Covalent < dispersion < hydrogen
  3. Hydrogen < covalent < dispersion
  4. dispersion < hydrogen bonds < covalent
Answer

This question is assuming that the molecules have the same relative mass, otherwise it is not possible to compare hydrogen bonds with dispersion forces. With the aforementioned assumption, the correct order is dispersion < hydrogen bonds < covalent
